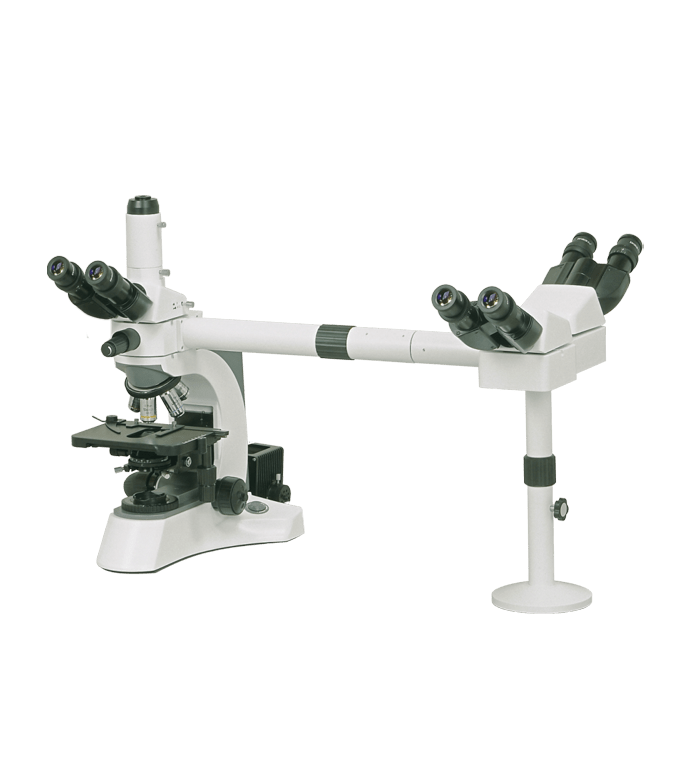

Multi-viewing microscopes allow people to observe specimen at the same time.
With the features of infinite optical system, effective illumination, LED pointer and images.
coherence, it is widely used in clinic, scientific research and teaching demonstration.
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf Type Trinocular Head , Inclined at 30°，Interpupillary 48-75mm |
| Tiltable Binocular / Trinocular Head | |
| Eyepiece | Extra Wide Field Eyepiece EW10×/23, Eyepiece Tube Diameter 30mm |
| Nosepiece | Backward Quintuple Nosepiece |
| Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×,100× |
| Infinite Plan Achromatic Objective 20×,60× | |
| Plan S-Apo Objective 4×, 10×, 20×, 40×,100× | |
| Condenser | NA0.9/ 0.25 Swing Condenser N.A.0.9/0.25 |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm |
| Stage |
Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
| Kohler Illumination |
External Illumination, Asperical Collector, Halogen Lamp 6V/ 30W |
| External Illumination, Asperical Collector, Halogen Lamp 24V/ 100W | |
| LED Illumination,3W or 5W | |
| Photo Attachment | |
| Video Adapter |
C Mount 1× |
| C Mount 0.5× | |
| Polarization Attachment | |
| Turret Phase Contrast Kit | |
| Dark Field Attachment | Dark-field Condenser (Dry) |
|
Dark-field Condenser (Oil) |
|
|
Epi-Fluorescent Attachment |
Mercury lamp or LED Illumination |
