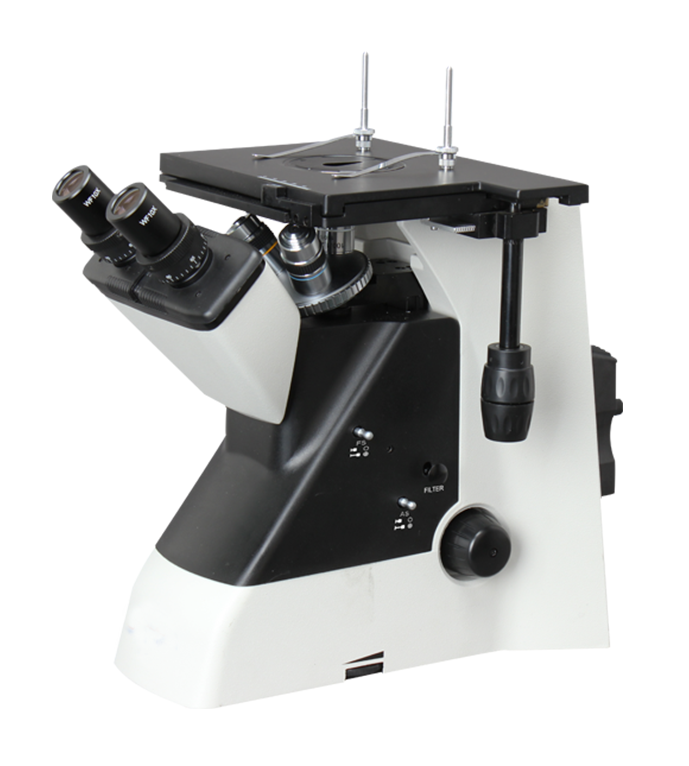

MR2100 inverted metalluergical micorscope is widely used in school and laboratory etc.,to identify and analyze organizational structure of metals and alloys, and do researching on metallurgical metairal after heating.
|
Optical System |
Finite optical system |
|
Wide field |
WF10X/18 |
|
WF12.5X/14 |
|
|
WF16X/11 |
|
|
Objective |
Achromatic objective 10X/0.25 WD=6.3mm |
|
Plan achromatic objective 40X/0.65 WD=0.7mm |
|
|
Plan achromatic objective 50X/0.75 WD=2mm |
|
|
Achromatic objective 100X/1.25(oil) WD=0.1mm |
|
|
Viewing Head |
Sliding binocular viewing head |
|
Monocular viewing head |
|
|
Integrative sliding binocular digital head(200M) |
|
|
Integrative sliding binocular digital head(300M) |
|
|
Illumination |
12V/20W Halogen lamp, Center and brightness adjustable |
|
Focusing |
Coaxial coarse and fine adjustment, Fine division 0.002mm, Moving range 8mm |
|
Nosepiece |
Triple nosepiece |
|
Stage |
Mechanical stage180X155mm, Moving range 40X30mm, Stage Clips 1pc, Stage:Teardrop,Round Hole |
|
Filter |
Green、Yellow and Daylight filter |
