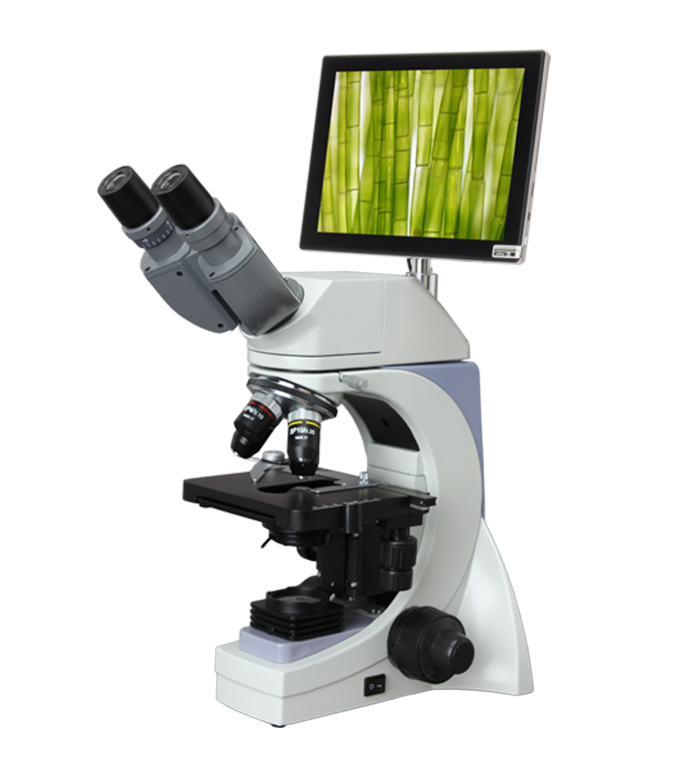

NLCD-120 digital LCDmicroscope is a new generation microscope with Android OS, just like a tablet.
Support WiFi wireless and bluetooth. It’s easy to extend the application.
With 9.7 inch LCD screen, wual core 1.8G processor, HDMI video output and TF card expansion. It’s easy to use and can be widely used in various optical micro fields, such as teaching, researching, electronic checking and so on.
|
NLCD-120E Technical specifications |
|
|
Digital part |
5.0 Mega Pixels CMOS Chip |
|
Support Wifi and Bluetooth |
|
|
Viewing Head |
Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm |
|
Eyepiece |
Wide Field Eyepiece WF10X/18 |
|
Objective |
Semi-Plan Achromatic Objective 4X、10X、40X、100X |
|
Nosepiece |
Quadruple Nosepiece |
|
Stage |
Double Layers Mechanical Stage 140X140/75X50 |
|
Condenser |
Sliding-in centerable condenser NA1.25 |
|
Illumination |
6V/20W Halogen Lamp Illumination, Adjustable Brightness |
|
S-LED Illumination, Adjustable Brightness |
|
|
LCD Screen |
9.7 Inch LCD（2048*1536） |
|
Output |
USB2.0、Mini HDMI、3.5mm headphone |
|
OS |
Android 5.1 |
|
Software |
S-EYE |
|
SD Card |
Support TF Card |
|
Mouse |
|
|
NLCD-120F Technical specifications |
|
|
Digital part |
5.0 Mega Pixels CMOS Chip |
|
Support Wifi and Bluetooth |
|
|
Viewing Head |
Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm |
|
Eyepiece |
Wide Field Eyepiece WF10X/18 |
|
Objective |
Infinite Semi-Plan Achromatic Objective 4X、10X、40X、100X |
|
Nosepiece |
Quadruple Nosepiece |
|
Stage |
Double Layers Mechanical Stage 140X140/75X50 |
|
Condenser |
Sliding-in centerable condenser NA1.25 |
|
Illumination |
6V/20W Halogen Lamp Illumination, Adjustable Brightness |
|
S-LED Illumination, Adjustable Brightness |
|
|
LCD Screen |
9.7 Inch LCD（2048*1536） |
|
Output |
USB2.0、Mini HDMI、3.5mm headphone |
|
OS |
Android 5.1 |
|
Software |
S-EYE |
|
SD Card |
Support TF Card |
|
Mouse |
|
