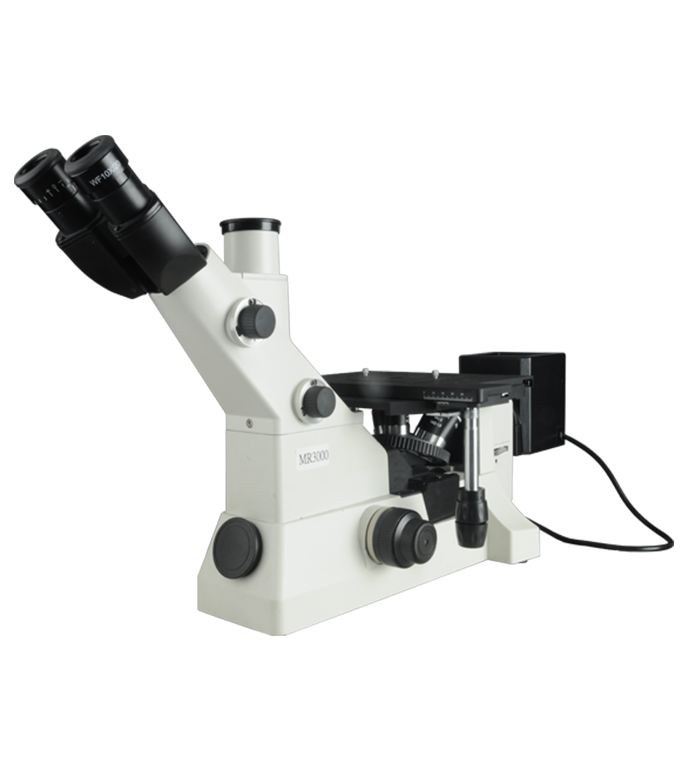

With the stable stand structure,advanced stage design and comfortable operation,it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy .
| Optical System | Infinite optical system |
| Extra Wide FieldEyepiece | WF10X/20 |
| WF10X/20，Eyepiece with Scale of Cross hair | |
| WF15X/16 | |
| WF20X/12 | |
| Eyepiece | 4X/0.10/∞/0(BF/DF) LWD 20.7mm |
| Achromatic Objective | 10X/0.25/∞/0(BF/DF) LWD 10mm |
| 20X/0.4/∞/0(BF/DF) LWD 5mm | |
| 50X/0.75/∞/0(BF/DF) LWD 1.3mm | |
| 100X/0.9/∞/0(BF/DF) LWD 0.7mm | |
| Viewing Head | Siedentopf binocular viewing head, Inclined at 45°,Interpupillary 48mm-75mm，Splitting Ratio: for observation 80%,for camera 20% , or for observation 100%，and camara 100 |
| Illumination | 12V/50W Halogen light, Center and brightness adjustable |
| Focusing | Coaxial coarse and fine adjustment, fine division 2μm, Moving range( from the focusing of the stage surface) Up 1mm ,Down 7mm |
| Nosepiece | Backward quintuple nosepiece |
| Stage | Double layer mechanical stage 226X178mm, Moving range 40mmX40mm |
| Function | Bright Field , Polarization |
