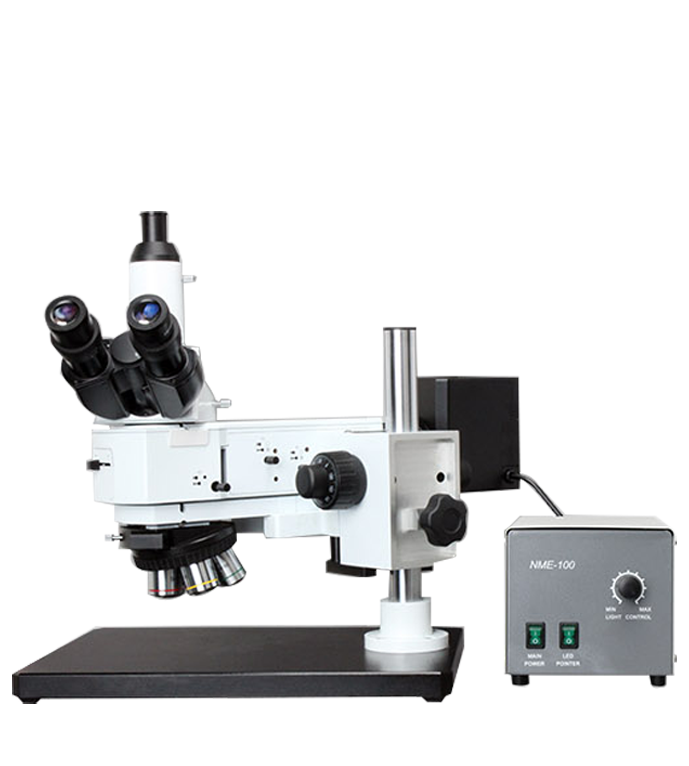

NMFM is a compact and versatile detecting Microscope system. Broght field dark field,polarization and DIC is available.
Various Illuminations:150W halogen and 40W LED cold light,connecyed by fiber.
With big base and extral long pole,convenient for observation of big size LCD panel,PCB and thick sample.
|
NMFM-B Infinite optical system |
|
|
Optical |
Infinite optical system |
|
Extra wide field |
EW10X/22 Φ30 |
|
Infinite |
5X/0.12/∞/-(明场) LWD 15.5mm 5X/0.12/∞/-(BF) LWD 15.5mm |
|
10X/0.25/∞/-(明场) LWD 10mm 10X/0.25/∞/-( BF) LWD 10mm |
|
|
20X/0.4/∞/0(明场) LWD 5.8mm 20X/0.4/∞/0(BF) LWD 5.8mm |
|
|
50X/0.75/∞/0(明场) LWD 0.32mm 50X/0.75/∞/0(BF) LWD 0.32mm |
|
|
100X/0.8/∞/0(明场) LWD 2mm 100X/0.8/∞/0(BF) LWD 2mm |
|
|
DIC |
20X/100X |
|
Viewing Head |
Siedentopf trinocular viewing head,inclined at 30째 interpupillary 48-75mm |
|
Incident Light |
24V/100W Halogen light,Lightness adjustable |
|
150W Cold light, Lightness adjustable |
|
|
40WLED Cold light, Lightness adjustable |
|
|
Polarizer and analyzer |
|
|
Blue,Green,Yellow and Ground glass |
|
|
Focusing |
Coaxial coarse and fine adjustment,fine division 1關m,moving range 32mm |
|
Nosepiece |
Backward qunituple nosepiece |
|
Stand |
Size of the soleplate 396X276X22mm，The height of post 300mm，The diameter of post 30mm |
|
Photo Attachment |
|
|
VideoAttachment |
C Mount 1X |
|
NMFM-BD技术规格 |
|
|
Optical |
Infinite optical system |
|
Extra wide field |
EW10X/22 Φ30 |
|
Infinite |
5X/0.12/∞/-(明暗场共用) LWD 12mm 5X/0.12/∞/-( BF/DF) LWD 12mm |
|
10X/0.25/∞/-(明暗场共用)) LWD 10mm 10X/0.25/∞/-( BF/DF) LWD 10mm |
|
|
20X/0.4/∞/0(明暗场共用)) LWD 4.3mm 20X/0.4/∞/0(BF/DF) LWD 4.3mm |
|
|
50X/0.75/∞/0(明暗场共用)) LWD 0.32mm 50X/0.75/∞/0(BF/DF) LWD 0.32mm |
|
|
100X/0.8/∞/0(明暗场共用)) LWD 2mm 100X/0.8/∞/0(BF/DF) LWD 2mm |
|
|
DIC |
20X/100X |
|
Viewing Head |
Siedentopf trinocular viewing head,inclined at 30째 interpupillary 48-75mm |
|
Incident Light |
24V/100W Halogen light,Lightness adjustable |
|
150W Cold light, Lightness adjustable |
|
|
40WLED Cold light, Lightness adjustable |
|
|
Polarizer and analyzer |
|
|
Blue,Green,Yellow and Ground glass |
|
|
Focusing |
Coaxial coarse and fine adjustment,fine division 1關m,moving range 32mm |
|
Nosepiece |
Backward qunituple nosepiece |
|
Stand |
Size of the soleplate 396X276X22mm，The height of post 300mm，The diameter of post 30mm |
|
Photo Attachment |
|
|
VideoAttachment |
C Mount 1X |
